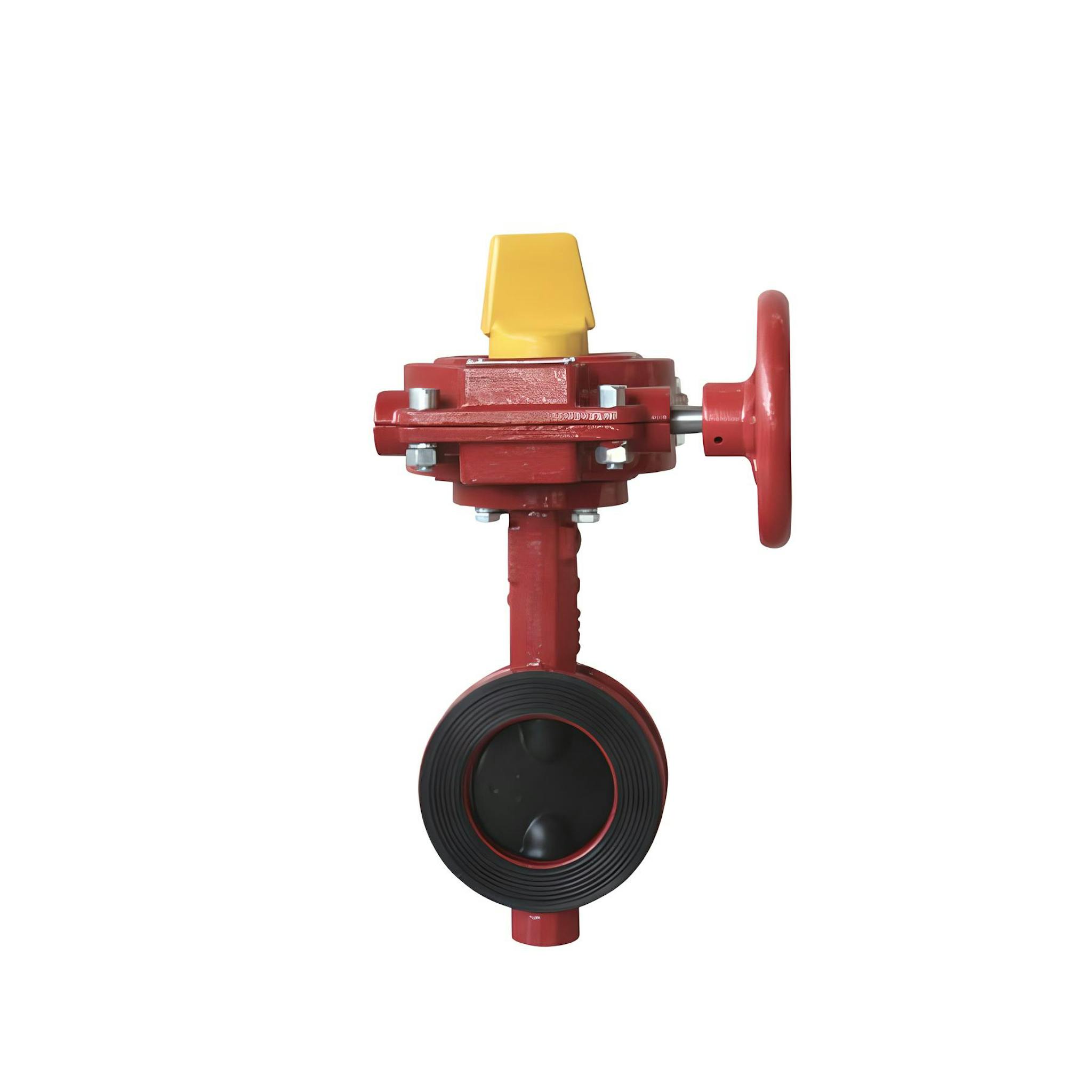

Wafer Butterfly Valve With Tamper Switch
(SKYEG-BFVW-300)
Description
Fire valves are essential components in firefighting systems, designed to control the flow of water or other firefighting agents in emergency situations. They are commonly used in fire protection systems to ensure rapid and reliable water supply for sprinkler systems, fire hydrants, and other firefighting equipment. Fire valves play a critical role in safeguarding lives and property across various industries, including commercial, industrial, and residential buildings.
- •Design Standard:MSS SP-67
- •Top Flange Standard:ISO 5211
- •Working Pressure:300PSI/363PSI, 175PSI,200PSI and 250PSI available upon request
- •Temperature Range:0℃ - 80℃
- •Coating:Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
- •Flange specification:ASME B16.1 CL125, ASME B16.5 CL150
Material Specification
|| = Other Options

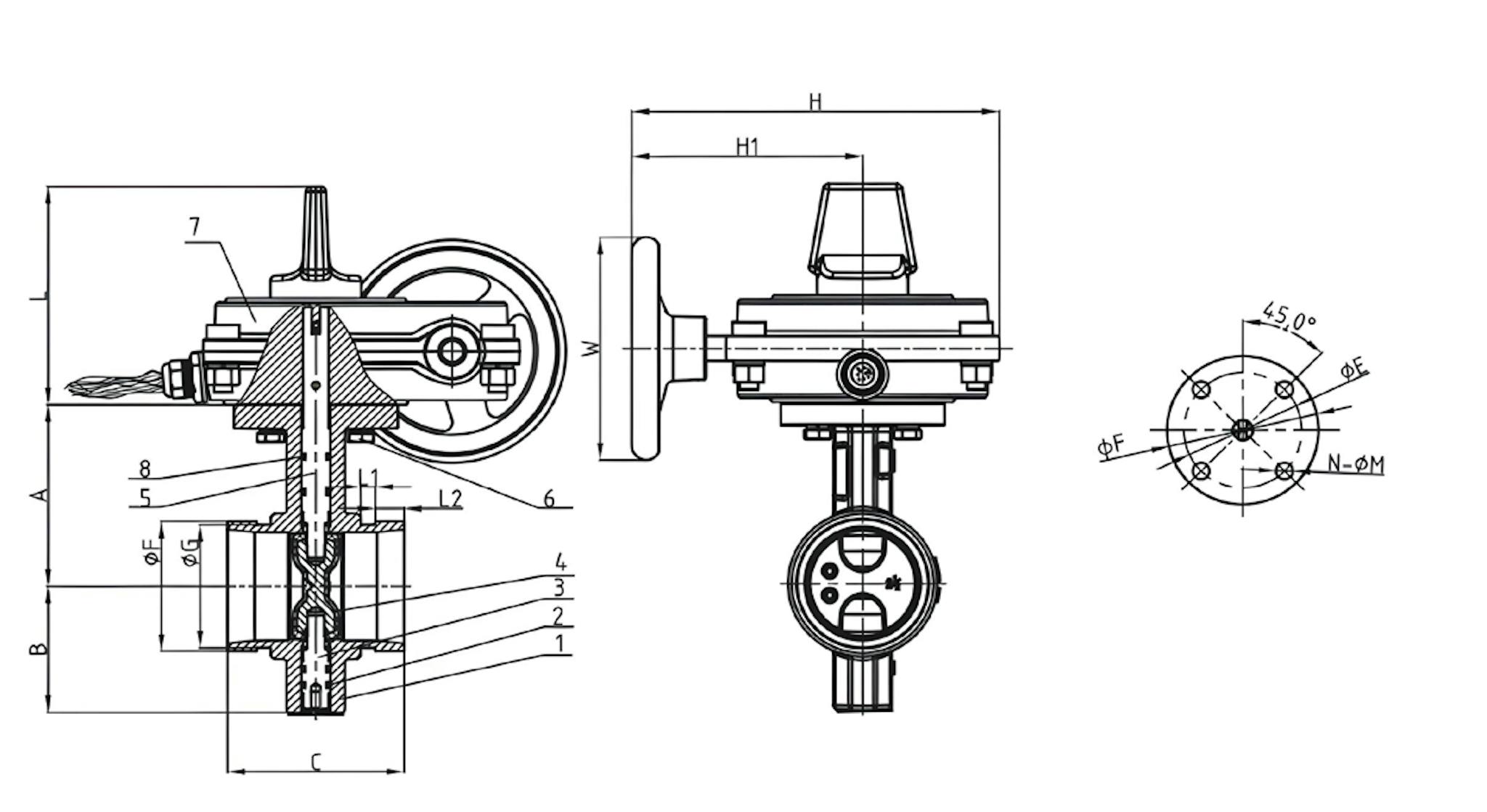

Dimensions
| DN | Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | A | b | C | H | Iso5211 | L | Φe | ΦF | w |
| 2.5" | 65 | 153 | 81 | 46 | 202.2 | F07 | 122.5 | 70 | 90 | 125 |
| 3" | 80 | |||||||||
| 4" | 100 | 176 | 95 | |||||||
| 4" | 100 | 52 | ||||||||
| 5" | 125 | 191 | 111 | 56 | ||||||
